How to Do Drawing to 3D Model Conversion

Let’s say you’ve got a drawing, something you sketched out during a burst of inspiration, and now you’re itching to see it leap off the page into three dimensions. Well, that’s exactly what I did with my first squirrel character design; brought it to life through 3D modeling from just a simple sketch on a napkin.

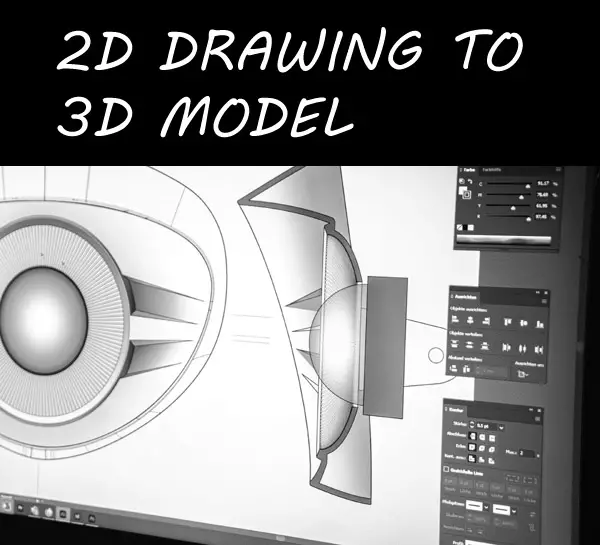

4d drawing being turned into 3d object

I remember sitting down with my trusty pencil and paper, creating curves and lines that felt alive. Fast forward through learning the ropes of turning  a drawing into a 3d model, and there was my creation—textured and rotating on screen. This is where we step up our game from flat images to dynamic models ready for animation, education, gaming or even 3D printing.

In this piece, I’m unpacking every stage: picking user-friendly software—even if CAD sounds like another language right now—and understanding file formats like STL and OBJ so your work translates smoothly across platforms. Plus, I’ll dive into some nifty advanced techniques that will take your designs to the next level. Whether you’re a beginner or looking to polish your skills, these insights will help you master the craft of 3D modeling.

Transitioning from Sketch to 3D Model: The Basics

From Paper to Pixels: Understanding the Transformation Process

The journey from sketch pad to screen is all about translating your two-dimensional vision into a three-dimensional masterpiece. But before we get our hands digitally dirty, let’s talk basics. You start with an idea drawn on paper—or perhaps on one of those nifty tablets—and then use design tools that help bridge worlds; this means turning flat images into workable models in CAD software.

2D can include drawings such as blueprints which can be extruded to varying heights for technical 3d models or sketches of objects such as people or cells that we need to turn into 3D.

We need more than just guts and gusto here—we need precision. So while anyone can scribble up something on paper, creating detailed sketches complete with height dimensions will give us leg-up when we hit the virtual ground running.

Your trusty sketch should include different angles—think front-on views paired with side profiles—to provide reference points once we’re deep within modeling territory. Height lines matter too because they act as guides for extruding shapes in 3D space—a fancy way of saying “pulling out” your design like until it looks right.

Selecting Software for Your Drawing-to-Model Journey

CAD Powerhouses: Industry-Leading Software Options

When you’re stepping up from paper sketches to digital marvels, the right CAD software isn’t just a choice; it’s your gateway to bringing creations to life. Now, imagine this: you’ve got a drawing scroll unfurled on your desk – maybe it’s of an intricate human anatomy character or an elegant medical design piece. You need power and precision to turn that 2D dream into a 3D reality.

A heavyweight in the ring of modeling is AutoCAD. With its robust toolset and DWG file compatibility, it’s like having a Swiss Army knife at your fingertips for model-based design work. Then there’s SolidWorks – think of it as the chess grandmaster in engineering circles with sheet metal bends and curve networks all part of its strategic game.

If those options sound like they carry quite the price tag (and they do), don’t fret. There are also cost-effective champs such as SketchUp that still pack a punch with user-friendly interfaces ideal for architectural wonders where height dimensions matter most.

Feature-Rich Tools for Enhanced Design Precision

Diving deeper into specifics, some tools stand out not only because they play well with various file formats but because their feature set makes them invaluable allies in our quest from sketch geometry to tangible objects created within 3d space.

Rhinoceros sets itself apart by being able not just handle NURBS curves gracefully but allowing real-time collaboration across teams – essential when each member brings unique expertise onto the virtual table. Meanwhile Blender flexes its muscles through grease pencil tools which allow artists freedom akin sculptors shaping clay; speaking of which Blender includes snake hook brushes too giving one true sculpting capability without leaving home base meshes behind.

Fusion 360 might be another ace up your sleeve if complex machinery is what you are looking for or TinkerCAD if dipping toes into the waters of modeling techniques feels more comfortable initially.

File Formats Demystified in Drawing-to-Model Conversion

Navigating Through Model File Formats

If you’ve ever felt like you’re wading through alphabet soup when trying to convert your drawings into 3D models, you’re not alone. The variety of file formats can be overwhelming, but they are essential for ensuring that your designs transition smoothly from concept sketches to usable digital assets that can be used in animations or visualizations and edited.

Different software platforms prefer different snacks from this buffet of file types. For instance, if CAD is your playground, DWG files will often be the bread and butter of your design process; it’s the go-to format for many precision-based applications. However, when it comes time to bring these designs into a more sculptural space or perhaps even prepare them for 3D printing, STL files become the stars of the show with their mesh-based language that speaks directly to 3D printers.

But let’s not forget about OBJ files – think of them as universal translators between various modeling tools. They hold vertex information along with texture maps and are particularly friendly with a multitude of rendering and animation packages. So whether you’re aiming for Pixar-level character design or medical device visualization realism, OBJs help bridge gaps between creative ambition and technical execution.

Ensuring Compatibility Across Drawing and Modeling Platforms

Making sure our artistic endeavors play nicely across various platforms means keeping an eye on compatibility without losing sight of quality.

A common starting point is converting traditional hand-drawn sketches or vector art into something tangible within 3D space using drawing tools available in software such as  Blender’s Grease Pencil feature which turns lines into life-like forms ready for manipulation within its environment. This magic act transforms flat images into height dimension data points so objects can strut around confidently in three dimensions rather than just two—a bit like adding pop-up features to what was once just a regular old book page.

To streamline real-time collaboration during this dance between dimensions—and trust me; coordination here is key—formats such as DXF files allow seamless exchange among teams who may use varying design programs ranging from AutoCAD marvels to SketchUp gems.

With free-form modelling techniques burgeoning within fields like biological research (yes I’m looking at those researchers needing intricate anatomical models), understanding how each other plays nice becomes critical. If we don’t, we risk creating inefficient systems that can hinder progress across various disciplines. It’s about ensuring compatibility and fostering collaboration so that innovation can thrive without the constraints of technical limitations.

Sketch-Based Modeling Basics

We have two options, extruding a 2d blueprint using one of your software’s many extrude tools to whatever height is needed, or importing your sketches and lining them up in your orthographic views in a program like Blender or Maya, and then modeling from those views by drawing curves in orthographic views using some version of snap tool (I will not go into details here as its different for different programs) and then modifying those curves in 3D followed by creating a 3D surface from them.

Advanced Techniques in Sketch-Based Modeling

From Lines to Life: Curve Networks in Drawing to 3D Model

Imagine your sketch as a web of roads, each line guiding the journey from flat art to full-bodied forms. This is where curve networks become pivotal. In the advanced modeling workflow, artists and designers employ these paths as scaffolding for their digital creations.

The process starts with an image file or a hand-drawn sketch—think of it like your favorite drawing scroll filled with intricate designs. Software capable of interpreting these lines converts them into vector art; this sets the stage for transforming those curves into spine-like structures that define the shape’s surface in 3D space.

Adept at handling such tasks are CAD powerhouses like Autodesk Maya or Blender with tools such as Quad Draw, which let you draw directly onto a virtual canvas and create complex curve networks on-the-fly—a method favored by concept artists who need both precision and flexibility.

Elevating Imagery: Depth Map and Height Map Integration

You’ve probably seen topographical maps showing mountains’ highs and valleys’ lows—the same principle applies when adding dimensionality to sketches using depth map and height map techniques. By assigning different shades of gray representing various elevation levels within an image file, 3D software can interpret these nuances to craft textured surfaces that pop out from your screen.

This tech talk might sound like rocket science, but picture yourself playing with shadows on a sunny day; how they deepen around objects creates contrast—that’s essentially what you’re doing here but digitally. Tools like ZBrush offer sculpting capability where you paint grayscale images right onto models, manipulating heights almost magically before your eyes.

Beyond artistic endeavors, imagine applying this technique while working on research papers detailing biological organisms—you could generate realistic textures for tissues or organs starting merely from annotated drawings.

Crafting Dimensions: Masterful Manipulation Tools at Work

Drawing tools have come a long way since Paint 3D popped up letting us all play Picasso with pixels. Today’s design programs serve up powerful manipulation tools allowing one not just to convert drawings into base meshes but also refine every nook and cranny until perfection is met—or until we hit deadlines anyway.


Turning sketches into 3D models isn’t just a trick; it’s a skill. You’ve learned how to do drawing to 3d model conversion, starting with the basics and moving through software selection. You’ve got the tools now, ones that can turn flat drawings into dynamic creations.

Create something incredible from mere lines on paper. Use curve networks for complexity, depth maps for detail, advanced workflows to refine your vision. I hope you found this article useful. Click here to learn the different types of drawing curves in 3D programs.
